Passkey Provisioner Tool

The IDmelon Passkey Provisioner is a Windows desktop application (CLI) that writes FIDO2 passkeys onto physical security keys for your users. It works together with a provisioning workflow created in the IDmelon Admin Panel and can operate in two modes:

• Admin-Managed — an administrator provisions passkeys on behalf of users.
• Self-Service — users provision their own passkey.

Creating a provisioning workflow in the Admin Panel #

Both modes start from a provisioning workflow (request) created in the Admin Panel.

1. Log in to the IDmelon Admin Panel.

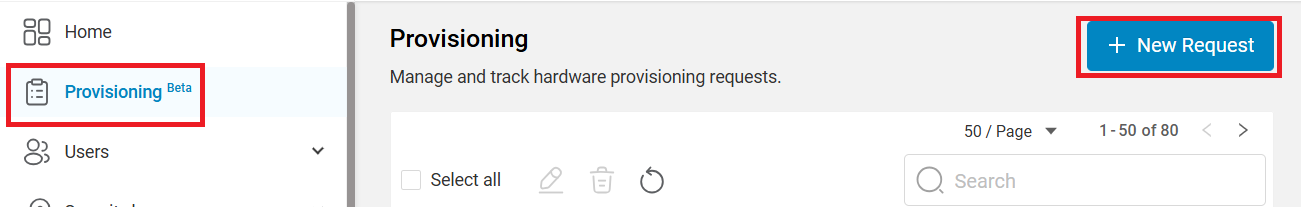

2. Navigate to Provisioning and click New Request.



3. Select the users or groups to provision, and click Next.

4. Select the hardware type — for example, Hardware → Crescendo Card — and click Next.

5. Add the Microsoft Entra ID for the Integrated RPs, and click Next.

6. Choose the provisioning mode:

   • Admin Managed — you provision on behalf of users.
   • Self-Service — users provision their own passkeys.

   Then click Next.

7. Set a PIN — random or static — and click Next.

8. Click Create Request, and then Provision Now (Set the Reset checkbox to checked if the security key must be reset before provisioning).

9. Start provisioning:

   • Admin-Managed: select Open passkey-provisioner when the browser alert appears. The CLI launches, polls the workflow, and provisions each pending user with the connected security key.
   • Self-Service: each selected user receives an email with a provisioning link. The user opens the link, follows the on-screen steps, and selects Open passkey-provisioner when the alert appears.

Note: When a run completes, each user’s status is updated in the Admin Panel. Close the current workflow and start a new one for the next batch.

Admin-Managed mode #

In Admin-Managed mode you register an Admin API Key on the machine once, then provision users from the workflow.

1. Generate an Admin API Key #

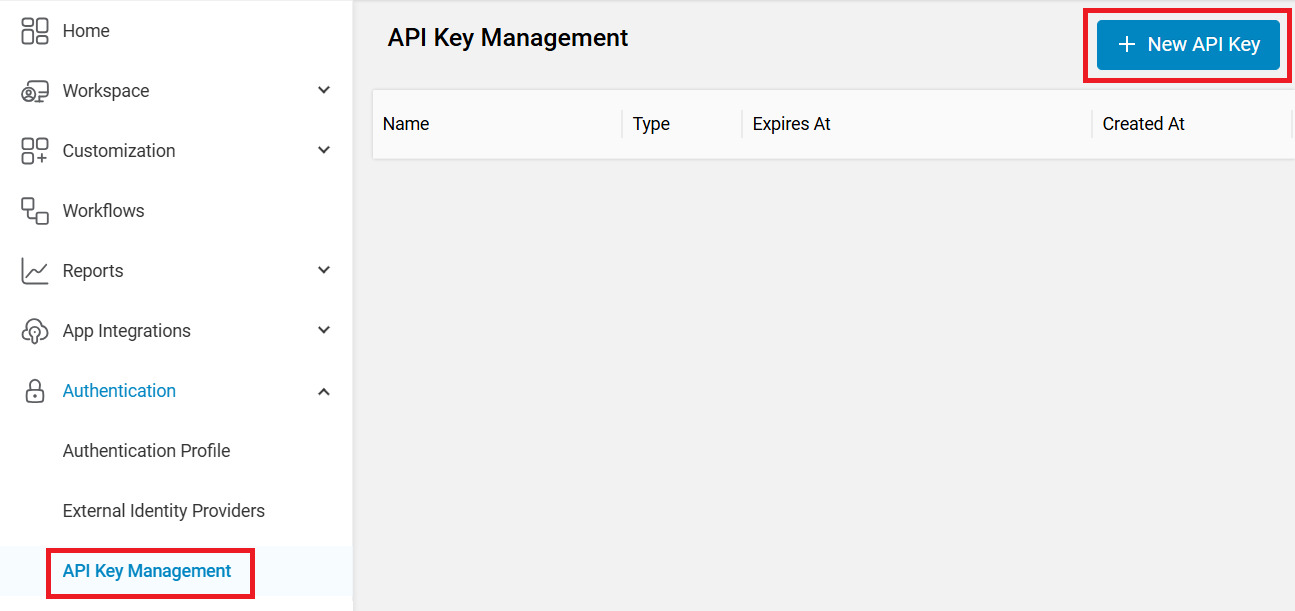

In the IDmelon Admin Panel, go to Authentication → API Key Management → New API Key and create a key with Type: Admin. Copy the generated key.

2. Register an IDmelon provider #

Register the API key locally as an IDmelon provider.

Open PoweShell (Terminal) and enter the command below:

passkey-provisioner providers --add "Contoso"

Replace Contoso with a label for the provider (for example, your tenant name), then follow the interactive prompts:

• Select a provider: 1 (IDMELON)
• Enter the API Key: paste the Admin API Key from step 1
• Enter the IDmelon endpoint: the base URL (default https://skm.idmelon.com)

Activate it (only needed if you have more than one provider):

passkey-provisioner providers --activate "Contoso"

3. Create and run the workflow #

Follow Creating a provisioning workflow above, selecting Admin Managed in step 6. When you click Open passkey-provisioner, the CLI launches automatically and provisions each pending user. Insert/tap the security key when prompted, and remove it when the CLI asks.

Self-Service mode #

Self-Service mode needs no API key and no provider — steps 1 and 2 of Admin-Managed do not apply. The user authenticates with their own security key to obtain an access token, then provisions their own passkey.

1. An administrator creates the workflow (see Creating a provisioning workflow), selecting Self-Service in step 6.
2. The user opens the provisioning link sent to their email address.
3. The user follows the on-screen steps and selects Open passkey-provisioner when the alert appears.
4. When provisioning starts, the CLI first prompts the user to touch their security key to obtain an access token, then provisions the passkey.

CLI command reference #

The CLI executable is passkey-provisioner. Supported commands: --help, --version, profiles, providers, device, config, and create.

Run any command with --help for command-specific guidance:

passkey-provisioner --help
passkey-provisioner profiles --help
passkey-provisioner providers --help
passkey-provisioner device --help
passkey-provisioner config --help
passkey-provisioner create --help

passkey-provisioner --version

profiles #

Manage provisioning profiles stored in the TOML configuration file. Exactly one option at a time.

Note: You don’t need this command when the provider is IDmelon.

passkey-provisioner profiles (--add <name> | --list | --delete <name> | --edit <name> | --show <name>)

--add / --edit prompt for: UV required? (y/n) · UP required? (y/n) · Factory reset the security key before provisioning? (y/n) · Set a random PIN if needed? (y/n) · Random PIN length [4] · Wait to remove the provisioned security key? (y/n).

Examples:

passkey-provisioner profiles --add "Default"
passkey-provisioner profiles --list
passkey-provisioner profiles --show "Default"
passkey-provisioner profiles --edit "Default"
passkey-provisioner profiles --delete "Default"

providers #

Manage providers, activate one, and optionally assign a profile to it. Exactly one option at a time.

passkey-provisioner providers (--add <name> | --activate <name> | --delete <name> | --edit <name> | --show <name> | --list)

When adding/editing, you choose the provider type:

• [1] IDMELON — api_key and endpoint (default https://skm.idmelon.com).
• [2] MICROSOFT — client_id, tenant_id, client_secret, and optional custom Entra and Graph endpoints.

You can also assign a profile name to the provider; if the profile doesn’t exist, profile creation is started.

Examples:

passkey-provisioner providers --add "Contoso"
passkey-provisioner providers --activate "Contoso"
passkey-provisioner providers --list
passkey-provisioner providers --show "Contoso"
passkey-provisioner providers --edit "Contoso"
passkey-provisioner providers --delete "Contoso"

device #

Manage the security key devices. Exactly one option at a time.

passkey-provisioner device (--list | --select | --reset)

Examples:

passkey-provisioner device --list
passkey-provisioner device --select
passkey-provisioner device --reset

config #

Set or reset global configuration values. Use one option, not both.

passkey-provisioner config (--reports-path <path> | --reset)

Examples:

passkey-provisioner config --reports-path "C:\IDmelon\Reports"
passkey-provisioner config --reset

create #

Provision passkeys for a single user (--user), for many users from a CSV (--csv) (When the provider is Microsoft), or through an SKM workflow (--provisioning-id / --config).

passkey-provisioner create (--user <email> [--pin <PIN>] | --csv <path>) --profile <name>
passkey-provisioner create --provisioning-id <id> [--config <Base64Json>]

Rules:

• Provide exactly one input mode: --user, --csv, or --provisioning-id.
• --profile is required with --user/--csv, and invalid with --provisioning-id/--config workflow mode.
• Do not combine --user with --csv.
• --pin is valid only with --user; for --csv, use the optional pin column instead.
• Workflow mode (--provisioning-id/--config) rejects --user, --csv, --pin, and --profile.

Examples:

# Single user
passkey-provisioner create --user "[email protected]" --profile "Default"

# Single user with an explicit PIN
passkey-provisioner create --user "[email protected]" --pin "123456" --profile "Default"

# Bulk from CSV
passkey-provisioner create --csv "users.csv" --profile "Default"

# SKM workflow (typically launched automatically via the deep link)
passkey-provisioner create --provisioning-id "my-workflow" --config "eyJ..."

Users CSV format (--csv) #

• The first column of each row is the user email; empty first-column values are skipped.
• If the first header cell is email or user (case-insensitive), that row is treated as a header and skipped.
• Optional column pin (case-insensitive): when present and non-empty for a row, it overrides the profile’s default PIN for that user.

Email only (recommended):

email
[email protected]
[email protected]

With optional per-user PIN:

email,pin
[email protected],123456
[email protected],

No header (also valid):

[email protected]
[email protected]

Use cases #

Admin-Managed #

• Bulk onboarding of a department or new hires. Create one workflow for a group in the Admin Panel, then run the launched CLI to write passkeys to a stack of cards — one API key on the admin machine, many users provisioned in one sitting.
• Central IT / help-desk issuance. A dedicated station with the reader and the active IDmelon provider issues security keys for users who cannot self-provision.
• Pre-provisioning of spare/replacement cards ahead of distribution.

Self-Service #

• Distributed or remote users. Each user receives an emailed link and provisions their own card at their own desk — no admin machine or API key required.
• Least-privilege provisioning. No Admin API Key is stored on the endpoint; the user’s own security key produces a short-lived access token, so nothing long-lived remains on the machine.
• User-initiated key replacement. A user who receives a new card can re-run their self-service link without waiting on IT.

Reports and logs #

• Reports: written to the folder set by config --reports-path (or the default location).
• Logs: %programdata%\IDmelon\Passkey Provisioner\Reports\passkey-provisioner.log.
