Set up Shared iPad with MSAL

Set up Shared iPad with MSAL

This is the main setup guide for the current Shared iPad with MSAL deployment.

The goal is simple:

• deploy IDmelon Authenticator to shared iPads
• apply the shared-mode configuration
• put Microsoft Authenticator in shared mode
• connect the iPad to Microsoft Entra ID through MSAL
• let users open Teams, Outlook, and My Apps after they sign in

This guide is intentionally shorter than the older shared iPad documentation. It focuses only on the deployment you are using now.

What you are setting up #

• Shared mode in IDmelon Authenticator
• Shared mode in Microsoft Authenticator
• MSAL for Microsoft applications
• Shortcut tiles such as Teams, Outlook, Google, and My Apps
• Self-service fallback for users who are not fully enrolled yet

Before you start #

• iOS or iPadOS 17 or later
• Administrative access to the Microsoft Intune admin center
• Administrative access to the Microsoft Entra admin center
• Access to the IDmelon Admin Panel
• The IDmelon Authenticator app available in your MDM catalog
• The Microsoft Authenticator app available in your MDM catalog
• A Shared Mobile API key created in the IDmelon Admin Panel
• Permission to create an app registration in Microsoft Entra ID

API key #

Before you configure the iPad, create a workspace API key dedicated to shared mobile devices.

1. Open the IDmelon Admin Panel.
2. Go to App Integrations > Authentication > API Key Management.
3. Click + New API Key.
4. Enter a descriptive name such as Shared iPad - Intune.
5. Set the Type to Shared Mobile.
6. Create the key and copy the value securely.

For more information, see API Key Management.

Entra app #

Before you build the Intune policy, create the Microsoft Entra app registration and copy the Application (client) ID.

Use this reference page:

• Microsoft Entra app for MSAL

You will place that client ID into the azure_client_id setting.

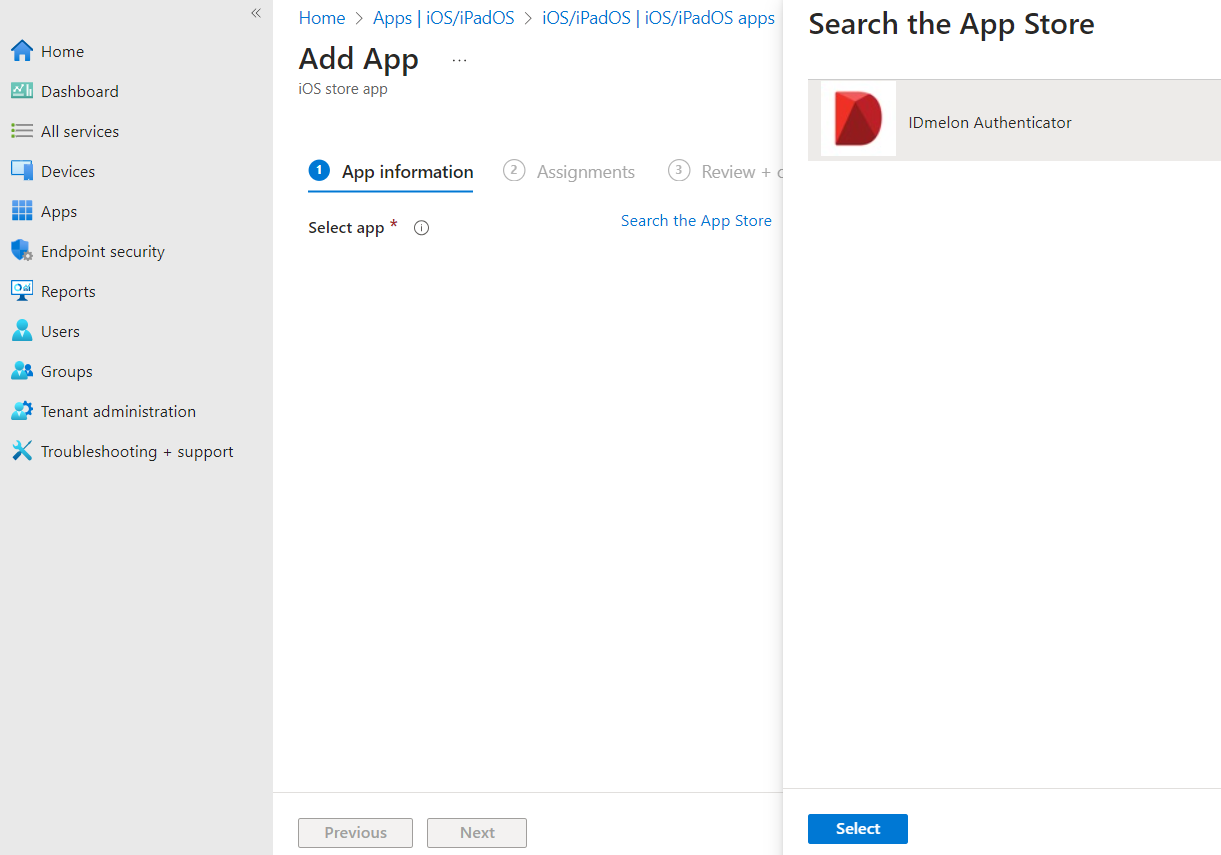

Intune app #

1. Sign in to the Microsoft Intune admin center.
2. Go to Apps > iOS/iPadOS.
3. Add IDmelon Authenticator as an iOS store app.
4. Assign the app to the shared iPad device group.

Assign Microsoft Authenticator to the same shared iPad device group. The MSAL flow depends on Microsoft Authenticator being present on the device.

App configuration #

Create a managed app configuration policy for IDmelon Authenticator and apply the following sanitized dict payload.

<dict>
  <key>api_key</key>
  <string>YOUR_SHARED_MOBILE_API_KEY</string>
  <key>azure_client_id</key>
  <string>YOUR_ENTRA_APP_CLIENT_ID</string>
  <key>shared_authentication_backend</key>
  <string>legacy</string>
  <key>shared_device_passkeys</key>
  <true/>
  <key>shared_login_method</key>
  <dict>
    <key>type</key>
    <string>face</string>
    <key>model</key>
    <string>hid</string>
  </dict>
  <key>shortcut_list</key>
  <array>
    <dict>
      <key>iconName</key>
      <string>teams</string>
      <key>title</key>
      <string>Teams</string>
      <key>url</key>
      <string>msteams://</string>
    </dict>
    <dict>
      <key>iconName</key>
      <string>outlook</string>
      <key>title</key>
      <string>Outlook</string>
      <key>url</key>
      <string>ms-outlook://</string>
    </dict>
    <dict>
      <key>iconName</key>
      <string>google.com</string>
      <key>title</key>
      <string>Google</string>
      <key>url</key>
      <string>https://google.com</string>
    </dict>
    <dict>
      <key>iconName</key>
      <string>myapps</string>
      <key>title</key>
      <string>My Apps</string>
      <key>url</key>
      <string>https://myapps.microsoft.com/?login_hint={email}</string>
    </dict>
  </array>
  <key>use_msal</key>
  <true/>
  <key>self_service_url</key>
  <string>https://panel.idmelon.com/self-service/YOUR_SELF_SERVICE_WORKFLOW_ID</string>
</dict>

Use your own values for:

• api_key
• azure_client_id
• self_service_url

Keep these values exactly as shown unless your deployment team gives you a different requirement:

• shared_authentication_backend = legacy
• shared_device_passkeys = true
• use_msal = true

Shared login method #

Set shared_login_method explicitly in the managed app configuration. The deployment can use one of these patterns:

Face login #

Use this when the shared iPad sign-in flow should use face-based authentication hardware:

<key>shared_login_method</key>
<dict>
  <key>type</key>
  <string>face</string>
  <key>model</key>
  <string>hid</string>
</dict>

• type = face means the user signs in with the face-based method
• model = hid means the configured HID-connected reader model is used

Badge login #

Use this when the shared iPad sign-in flow should use badge tap instead:

<key>shared_login_method</key>
<dict>
  <key>type</key>
  <string>badge</string>
  <key>model</key>
  <string>auto</string>
</dict>

• type = badge means the user starts sign-in by tapping their badge
• model = auto means the app automatically detects the supported badge-reader setup

Choose the option that matches your hardware and sign-in flow. Do not leave shared_login_method undefined if your deployment depends on a specific login method.

The shortcut list in the current setup includes:

• Teams
• Outlook
• Google
• My Apps

If you use a different shortcut set in production, update only that array.

Microsoft Authenticator #

Create a separate managed app configuration policy for Microsoft Authenticator and apply this required setting:

This setting must be applied to Microsoft Authenticator, not to IDmelon Authenticator. Without it, the shared iPad MSAL sign-in flow will not behave like a shared device deployment.

Use the same device group used for the shared iPad rollout so both apps receive their policies before testing.

Enterprise SSO #

After both app configurations are ready, configure the Microsoft Enterprise SSO Intune profile.

Use this reference page:

• Microsoft Enterprise SSO profile

Test sign-in #

1. Open IDmelon Authenticator on the shared iPad.
2. Complete the configured shared login method.
3. Open Teams, Outlook, or My Apps.
4. Confirm the device has already received the Microsoft Authenticator policy with sharedDeviceMode = true.

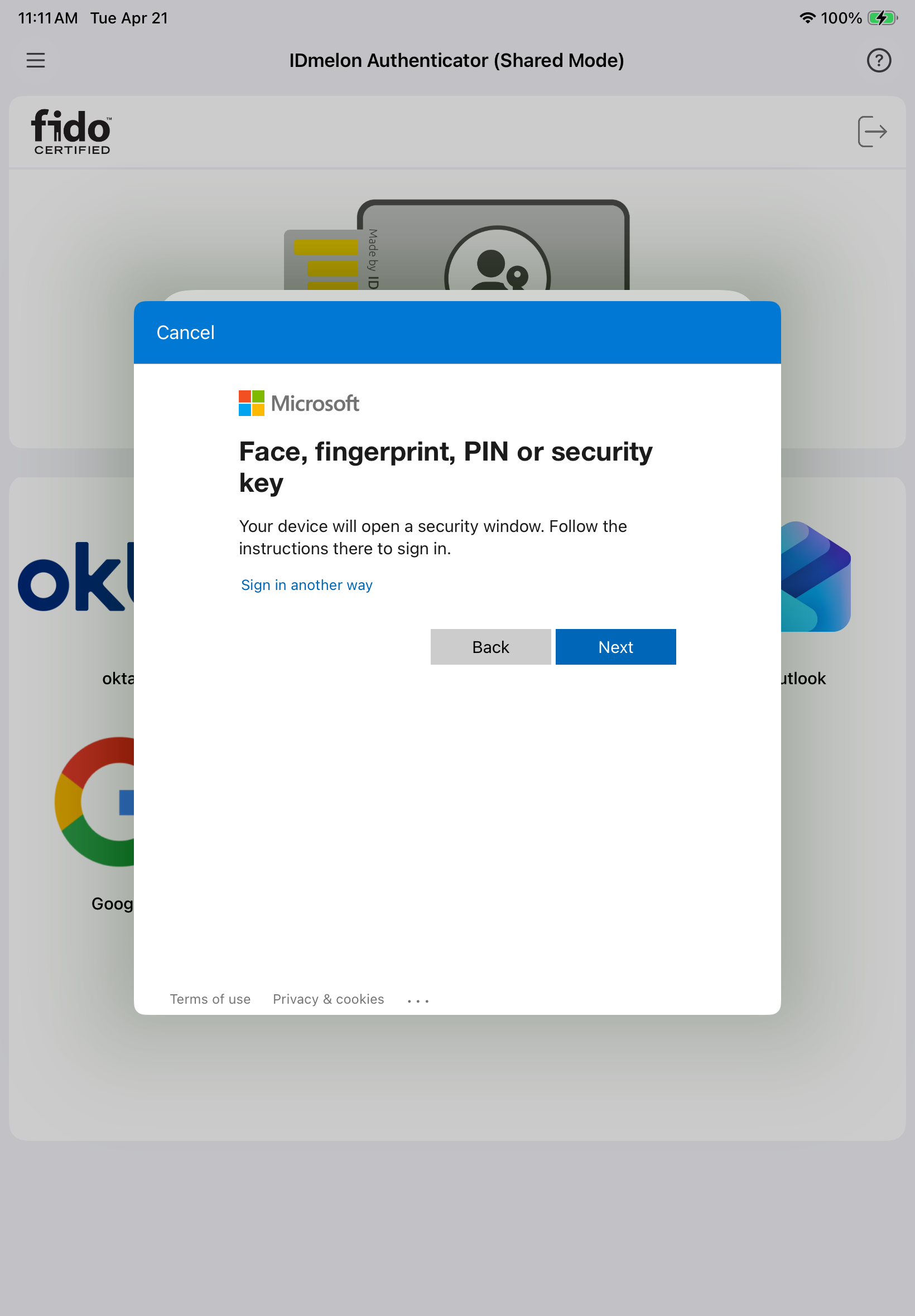

5. When the Microsoft dialog appears, continue with the MSAL sign-in flow.

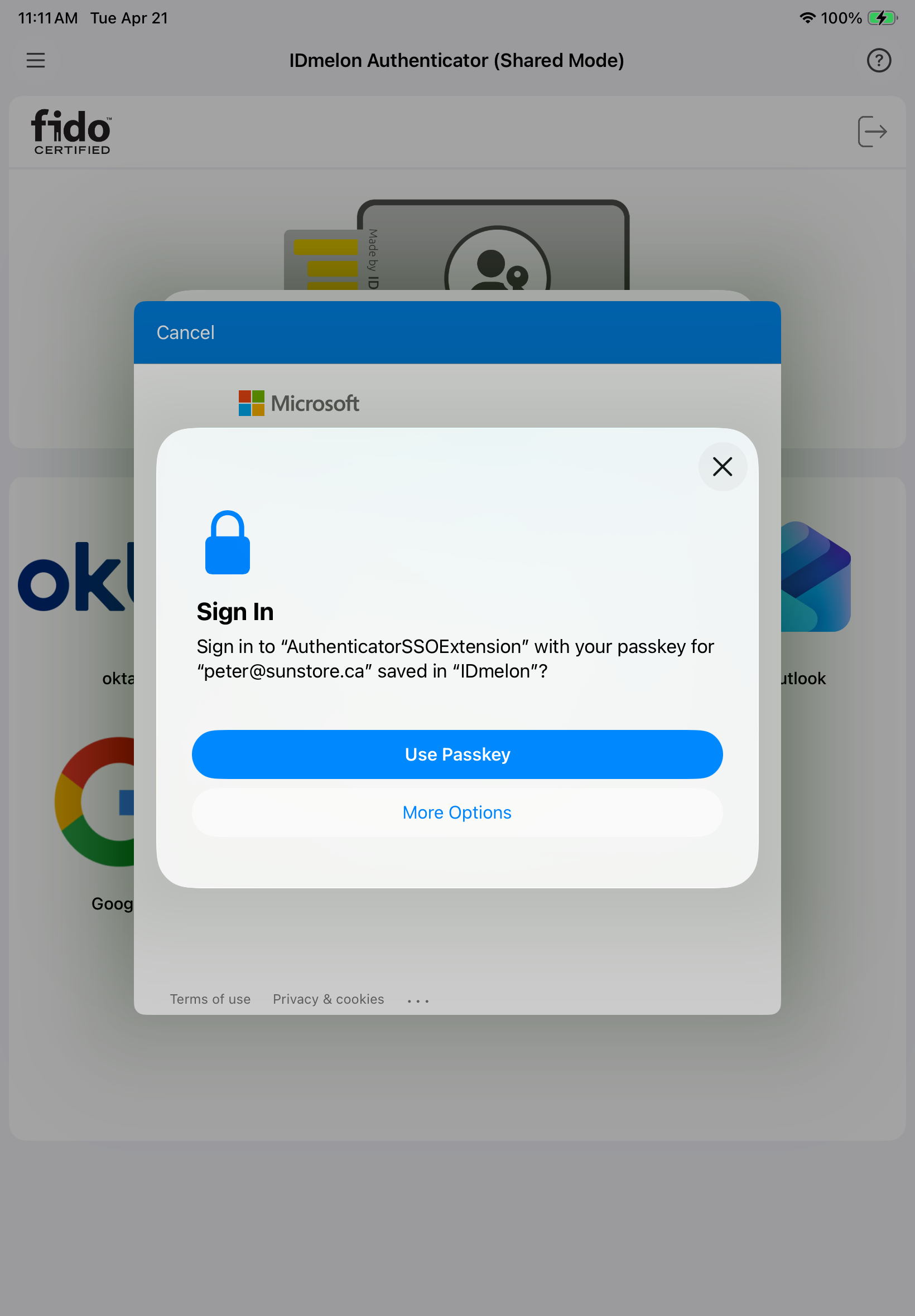

6. When the passkey prompt appears, use the passkey.

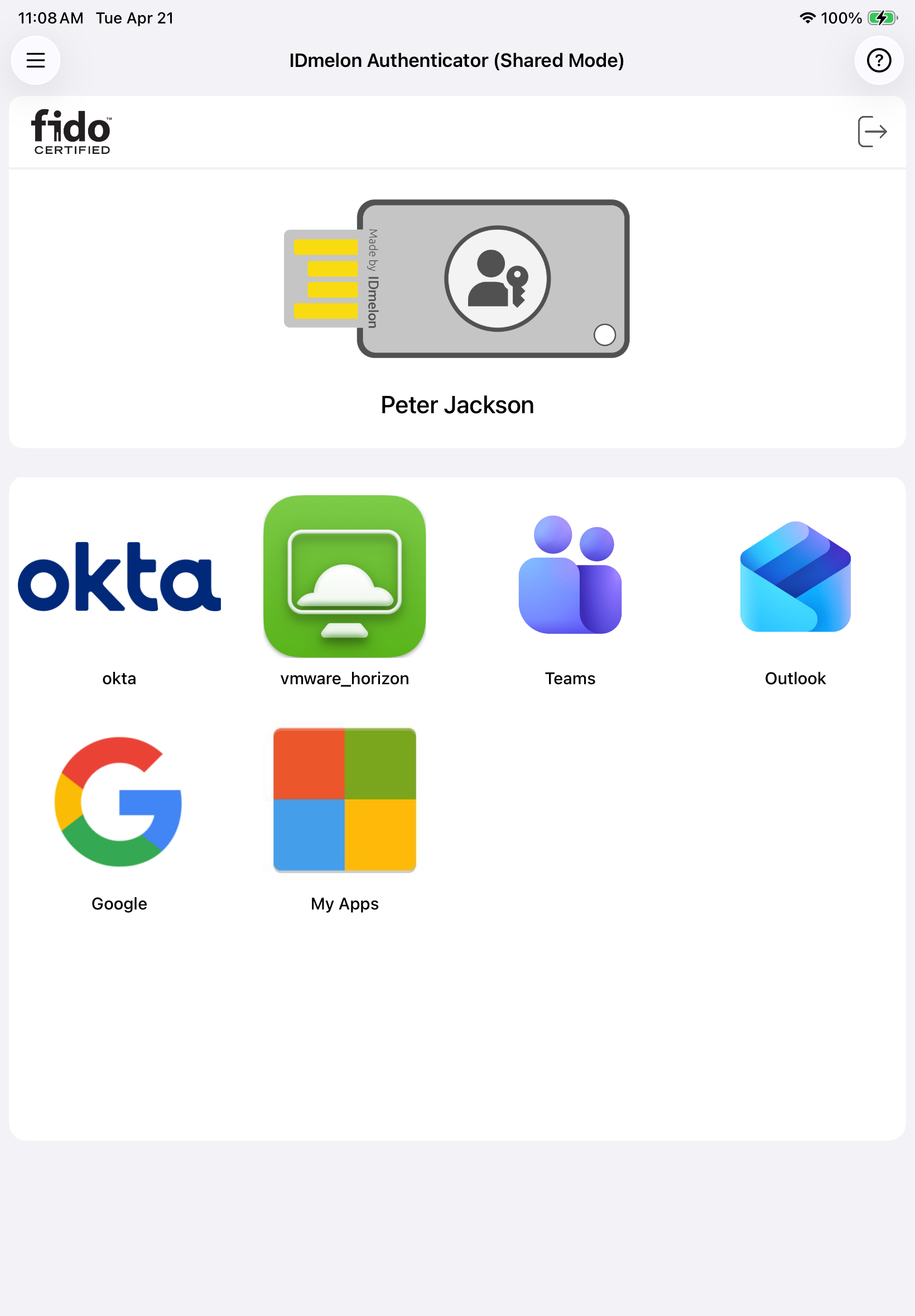

After sign-in #

After a successful sign-in, the user should return to the shared-mode home screen and see:

• the signed-in identity at the top of the page
• the available shortcut tiles
• Microsoft apps ready to open without repeating the full sign-in flow

Troubleshooting #

• If Microsoft apps still ask for repeated credentials, verify both use_msal and the Enterprise SSO profile.
• If the Microsoft flow does not act like a shared-device session, verify the Microsoft Authenticator policy sets sharedDeviceMode to Boolean true.
• If the app does not activate automatically, verify the Shared Mobile API key.
• If My Apps does not open correctly, confirm that the shortcut URL still contains login_hint={email}.
• If unenrolled users do not get redirected correctly, verify the self_service_url.
