Home Screen and Kiosk Experience

Choose how a shared Android device presents its apps, and set up multi-app kiosk mode with Managed Home Screen

This page is optional. A shared device works without any of it. Locking the home screen down is a matter of organization preference — how much of the device you want users to reach, and how tightly it must be controlled. If you have no such requirement, stop after Deploy and Configure IDmelon Authenticator.

If you do want that control, a dedicated device can present its apps in more than one way. This page covers the choice and walks through the setup that suits shared devices: multi-app kiosk mode with Microsoft’s Managed Home Screen launcher.

Before you start #

• Devices enrolled as Android Enterprise dedicated devices running Android 8.0 or later. See Enroll Shared Devices in Intune.
• IDmelon Authenticator deployed and configured. See Deploy and Configure IDmelon Authenticator.
• The list of apps users are allowed to open on the device.

Choose the experience #

Multi-app kiosk is the option most deployments want. Every app a shortcut tile points at must also be in the kiosk app list, otherwise the tile appears but does nothing.

Single-app kiosk is far more restrictive than it first sounds. The device runs IDmelon Authenticator and nothing else: no other native apps, and no separate web browser. That leaves exactly one workable pattern — pin IDmelon Authenticator as the kiosk app and publish everything the user needs as website shortcuts in shortcut_list, opened from inside IDmelon. Shortcuts pointing at native apps such as msteams:// cannot open under this mode. It fits single-purpose stations and little else.

Set up multi-app kiosk mode #

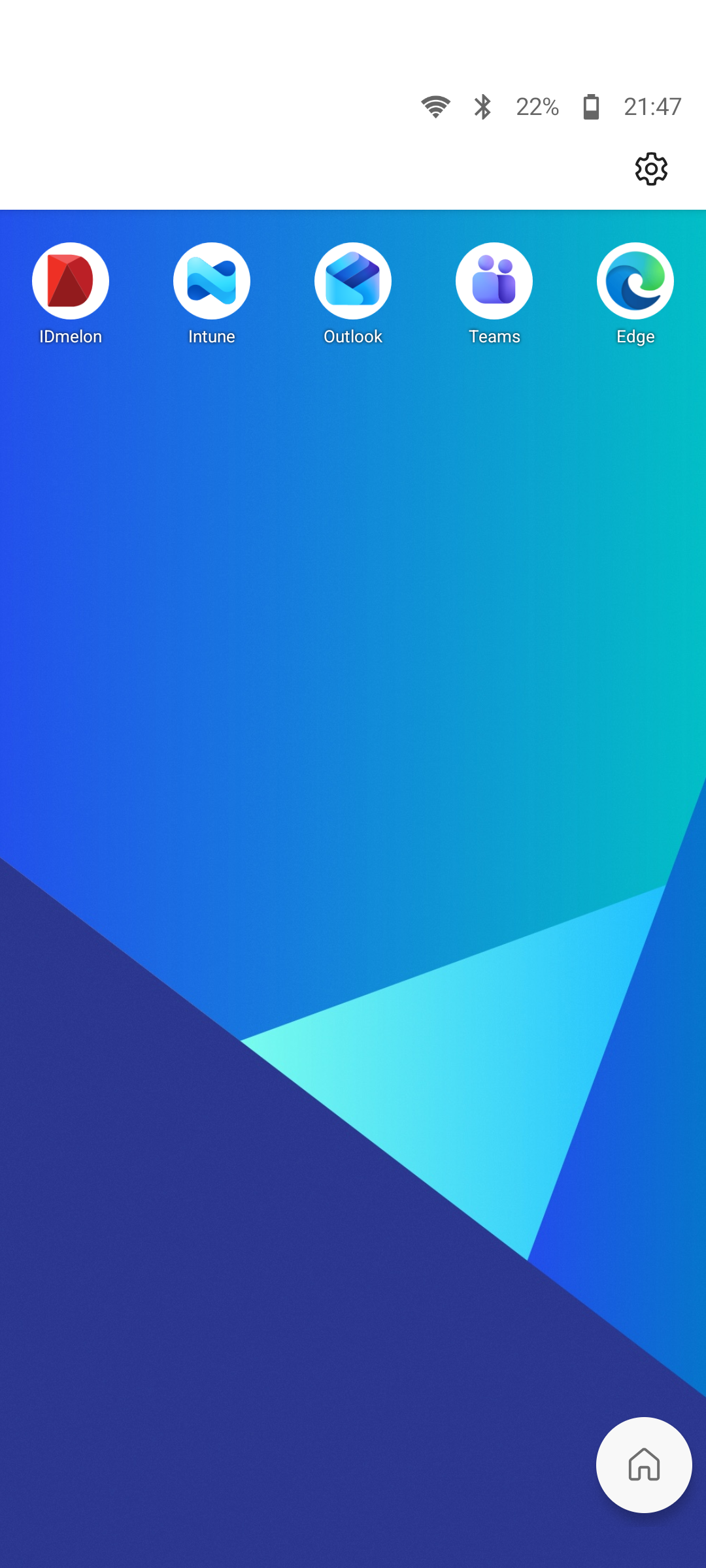

In this mode, Managed Home Screen replaces the device launcher, and the apps you list run on top of it.

Step 1 — Install the apps the kiosk will show #

Every app that appears in the kiosk — including Managed Home Screen itself — must be added in Intune and assigned as Required to your shared device group.

1. Go to Apps > Android > Create and add Managed Home Screen as a Managed Google Play app, then sync it.

2. Assign it as Required to the shared device group.

3. Confirm the same is true for IDmelon Authenticator and for every app your shortcut_list opens, such as Teams or Outlook.

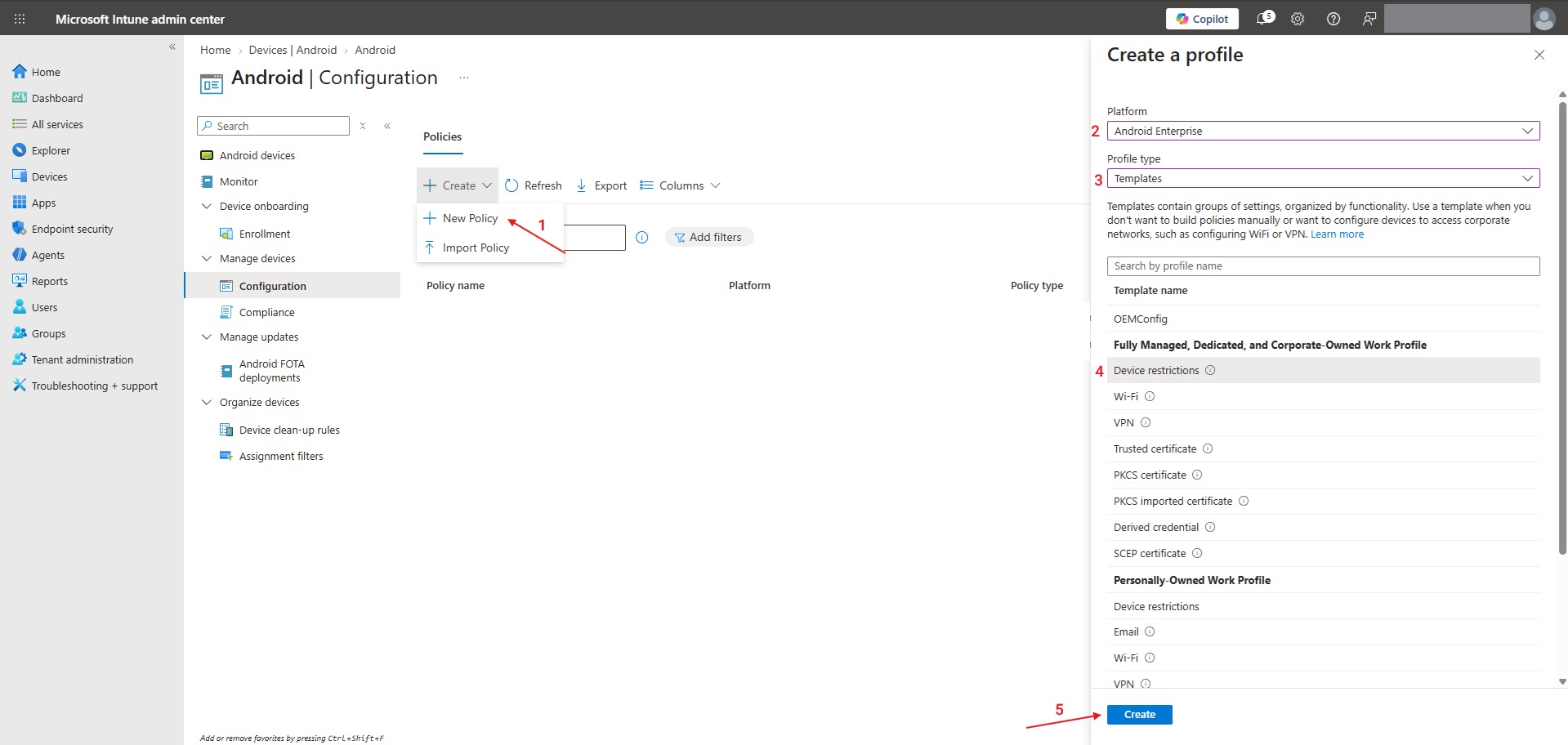

Step 2 — Create the device restrictions profile #

1. Sign in to the Microsoft Intune admin center.

2. Go to Devices > Manage devices > Configuration > Create > New policy.

3. Set Platform to Android Enterprise, and under Fully Managed, Dedicated, and Corporate-Owned Work Profile choose Device restrictions. Select Create.

4. Give the policy a name such as Shared Android - Kiosk, then continue to Configuration settings.

5. Open Device experience and set:

   • Device experience type: Kiosk mode (dedicated and fully managed).

   • Kiosk mode: Multi-app.

   • Add: select each app that belongs on the home screen — Managed Home Screen, IDmelon Authenticator, and every shortcut target.

   The app list also has an Allow without sign in column. It only takes effect if you turn on the Managed Home Screen sign-in screen in Step 3, and it does nothing on its own. Keep the app list here rather than in the Managed Home Screen app configuration policy — both write the same list, and configuring it in two places leads to conflicts.

6. Set Leave kiosk mode to Enable and set a Leave kiosk mode code — a 4 to 6 digit PIN. This is how an administrator temporarily leaves the kiosk to service the device. Without it, a locked device is hard to work on.

7. Assign the policy to the same device group used for the apps, then review and create.

To leave the kiosk on a device, press the back button repeatedly until Exit kiosk appears, enter the PIN, and open Managed Home Screen again when you are done to relock the device.

Step 3 — Choose how users reach the apps #

Managed Home Screen can either show the apps immediately, or ask the user to sign in to the home screen first. Both are configured in an app configuration policy for Managed Home Screen:

1. Go to Apps > Configuration > Create > Managed devices.

2. Set Platform to Android Enterprise and choose Managed Home Screen as the targeted app.

3. Configure the mode you want, using the configuration designer or the JSON editor.

4. Assign the policy to the shared device group.

Mode 1 — without Managed Home Screen sign-in #

Leave Enable sign in off. This is the default.

The home screen shows IDmelon Authenticator and the other apps as soon as the device starts. The user signs in through IDmelon Authenticator with a badge tap or face authentication, and if you set use_msal, IDmelon then signs them in to the Microsoft apps on the device. IDmelon remains the only place a user signs in.

Mode 2 — with Managed Home Screen sign-in #

Set Enable sign in to true. Managed Home Screen then shows its own sign-in screen and keeps the apps hidden until the user signs in.

On a shared device this needs one more thing, because the user has to reach IDmelon Authenticator before they can sign in anywhere:

• In this policy, set Sign in type to Microsoft Entra ID, so that signing in to Managed Home Screen also signs the user in to the other apps on the device that participate in Microsoft Entra shared device mode.

• Back in the device restrictions profile from Step 2, tick Allow without sign in for IDmelon Authenticator in the kiosk app list. In the Managed Home Screen JSON this is the same as app_available_prior_to_sign_in: true inside that app’s entry in the applications array, next to its package key — but set it in one place only, not both.

The user opens IDmelon Authenticator from the sign-in screen, authenticates with a badge or face, uses it to sign in to Managed Home Screen, and the apps appear.

Three things to expect in this mode:

• Apps allowed before sign-in are not shown as tiles. They open from an entry point on the top bar of the sign-in screen.
• Users must sign in again after every device reboot.
• If your device restrictions profile enables the Home and Overview buttons, or shows system notifications in the status bar, users can skip past the sign-in screen.

Step 4 — Customize Managed Home Screen (optional) #

The same app configuration policy carries the rest of the Managed Home Screen settings — grid size, wallpaper, screen saver, organization logo, session PIN, and automatic sign-out. For the full list, see Microsoft’s Configure the Microsoft Managed Home Screen app.

Validate on a test device #

1. Sync the test device and wait for the policies to arrive.
2. Confirm the device starts into Managed Home Screen rather than the stock launcher.
3. In Mode 2, confirm the sign-in screen appears and that IDmelon Authenticator can be opened from it.
4. Sign in through IDmelon Authenticator with a badge or face.
5. Confirm IDmelon Authenticator and every allowed app appear, and that nothing else is reachable.
6. Open each shortcut tile and confirm its target launches.
7. Confirm the Exit kiosk PIN works for administrators.
