Azure Application Integration

IDmelon makes it easy to integrate with your organization’s Entra ID tenant using various features available in the IDmelon panel, such as importing users and devices. This document describes the integration process, details the necessary permissions, and explains how to grant admin consent for seamless operation.

Overview #

IDmelon integrates with your Entra ID tenant using app-only access, allowing it to function as a standalone application. This approach enables IDmelon to perform background tasks, such as importing users through workflows, without interruptions. Additionally, it eliminates the need for repeated permission approvals from privileged administrators.

For more details on access scenarios, refer to the official Microsoft documentation.

Required Permissions #

Due to current Microsoft limitations, applications cannot request a subset of permissions for different actions. Consequently, IDmelon must request all permissions associated with its features. Learn more about this restriction in the Microsoft consent documentation.

The required permissions are as follows:

• Device.Read.All: Allows IDmelon to import all devices from Entra ID.
• Group.Read.All: Allows IDmelon to import all groups from Entra ID.
• User.Read.All: Allows IDmelon to read all users from Entra ID.
• UserAuthenticationMethod.ReadWrite.All: Allows IDmelon to add FIDO2 Security keys for users.

IDmelon always requests the least privileged permissions. However, if you are responsible for creating the permissions, you can substitute the first four permissions with the broader Directory.Read.All permission.

Granting Consent #

You can either grant permissions to the predefined IDmelon app registration with predefined permissions or define your own app registration manually and pass the required information to us.

Using IDMelon’s App Registration #

To approve these permissions, initiate any Entra ID-related feature within IDmelon. This action will redirect you to the admin consent flow. According to Microsoft, you need to sign in as at least a Privileged Role Administrator to consent to application permissions to Microsoft Graph.

For more details, refer to the official Microsoft admin consent documentation.

Using Manual App Registration #

If you need more control over the app registration and permissions, you can create your own app registration and integrate with IDMelon.

Navigate to Azure Portal and click on Microsoft Entra ID.

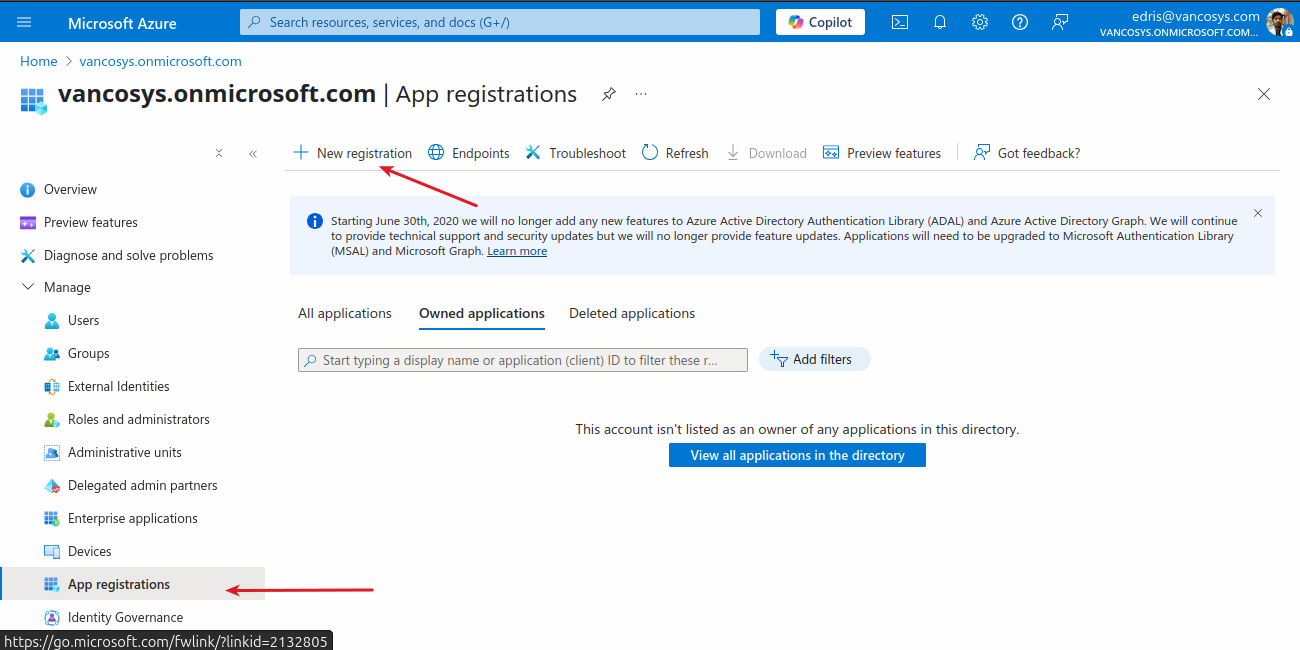

From the App registrations blade, click on New registration.

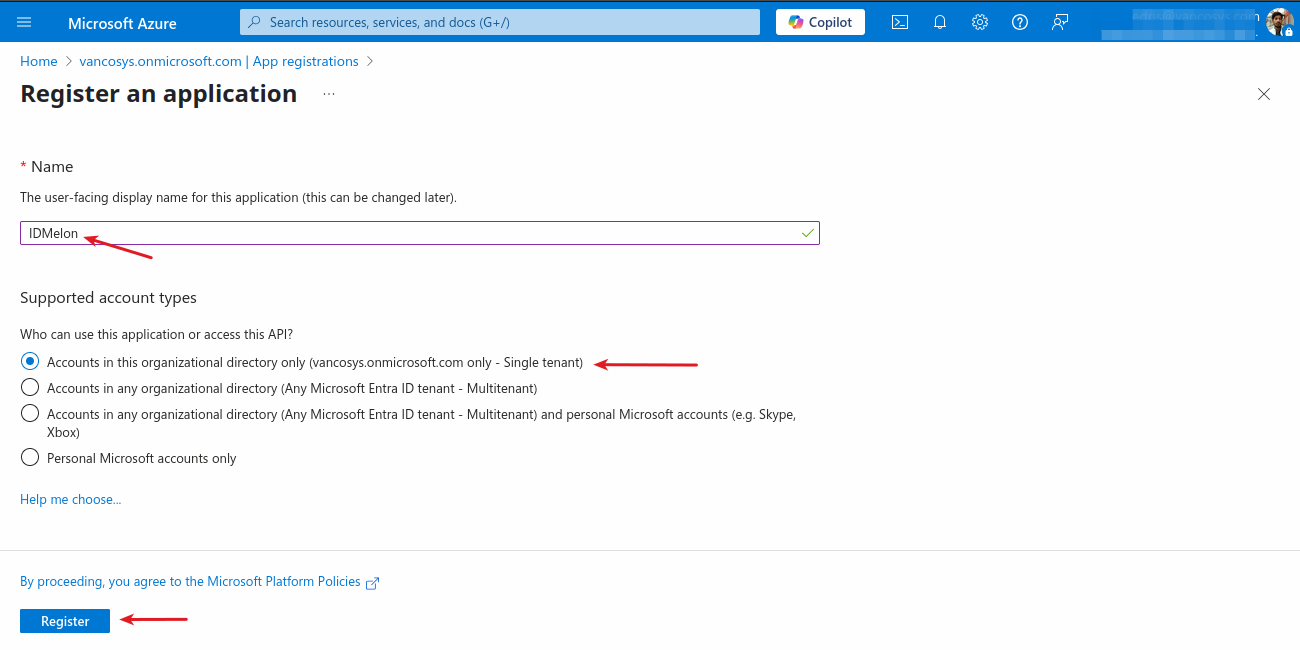

Fill in a name for the app registration and choose Single tenant. Click Register.

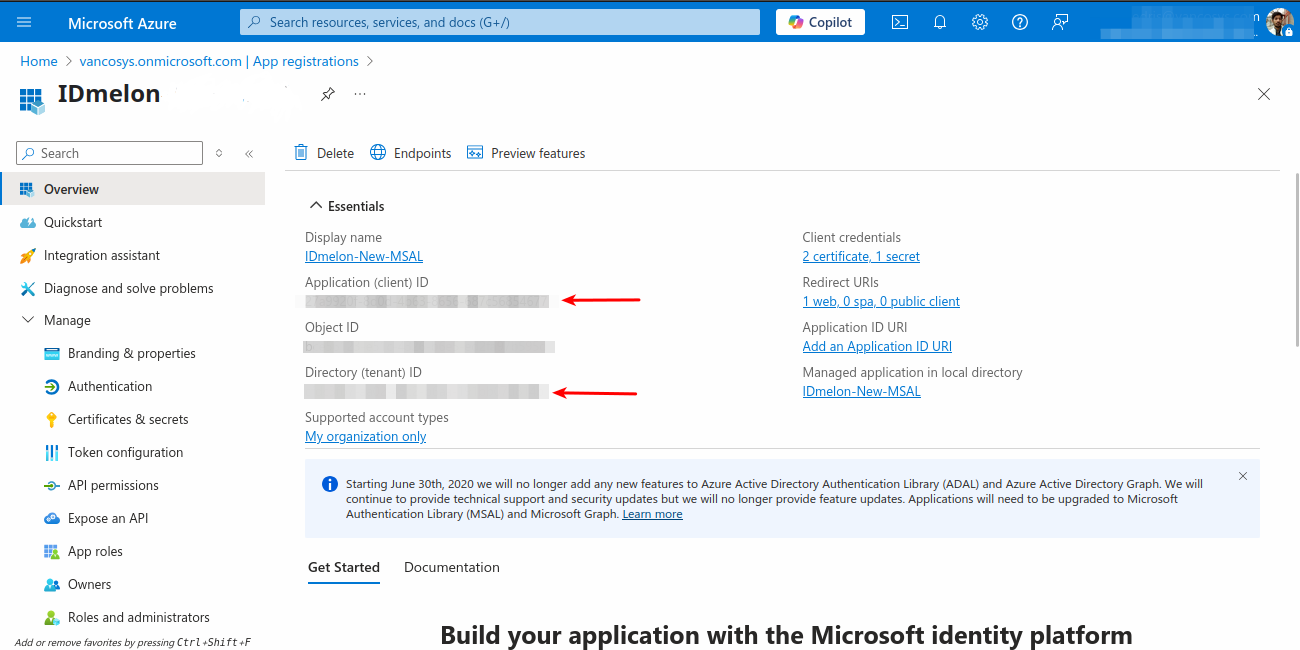

In the Overview blade, copy the Application (client) ID and Directory (tenant) ID.

For security configuration, IDMelon supports both options that Microsoft provides in the Certificates & Secrets menu. In this part of the documentation, we explain both configuration options so you can choose one.

Client Secret #

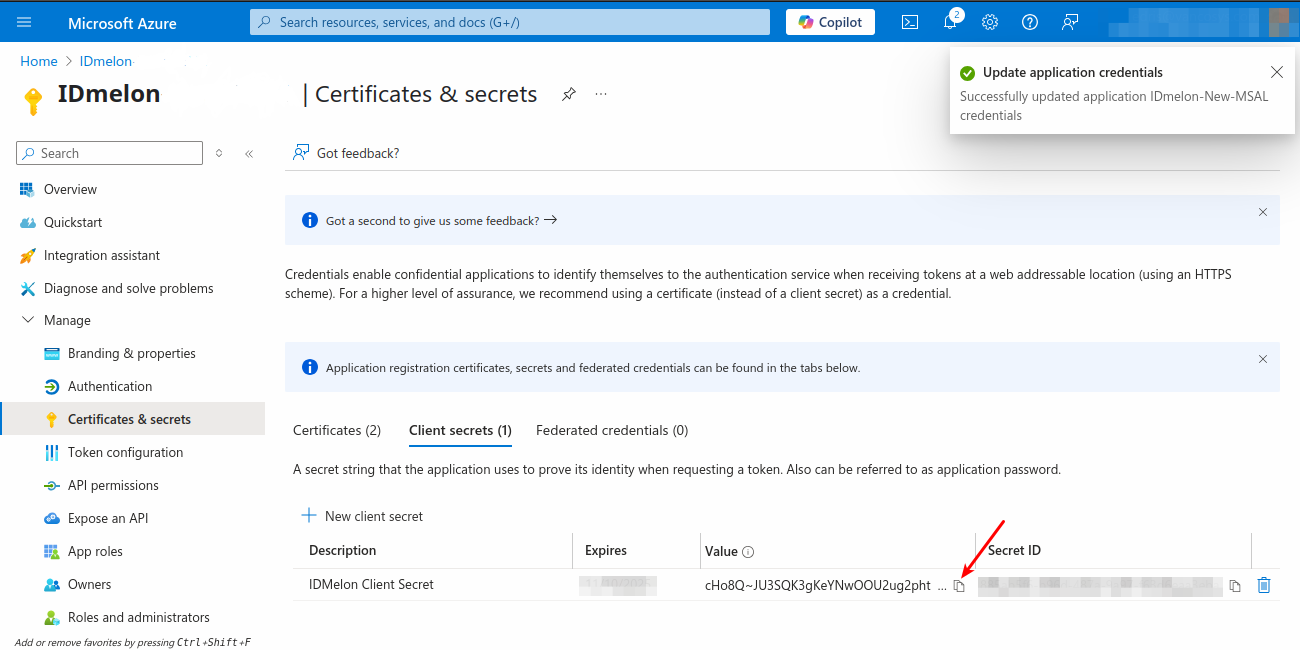

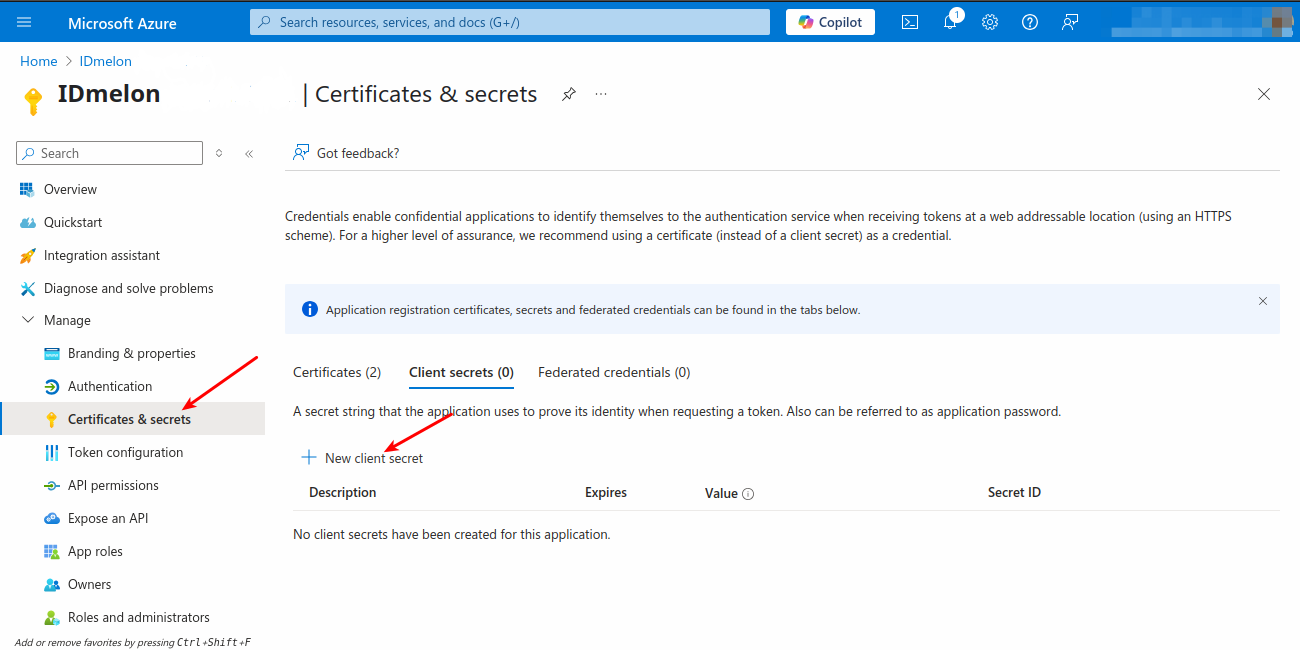

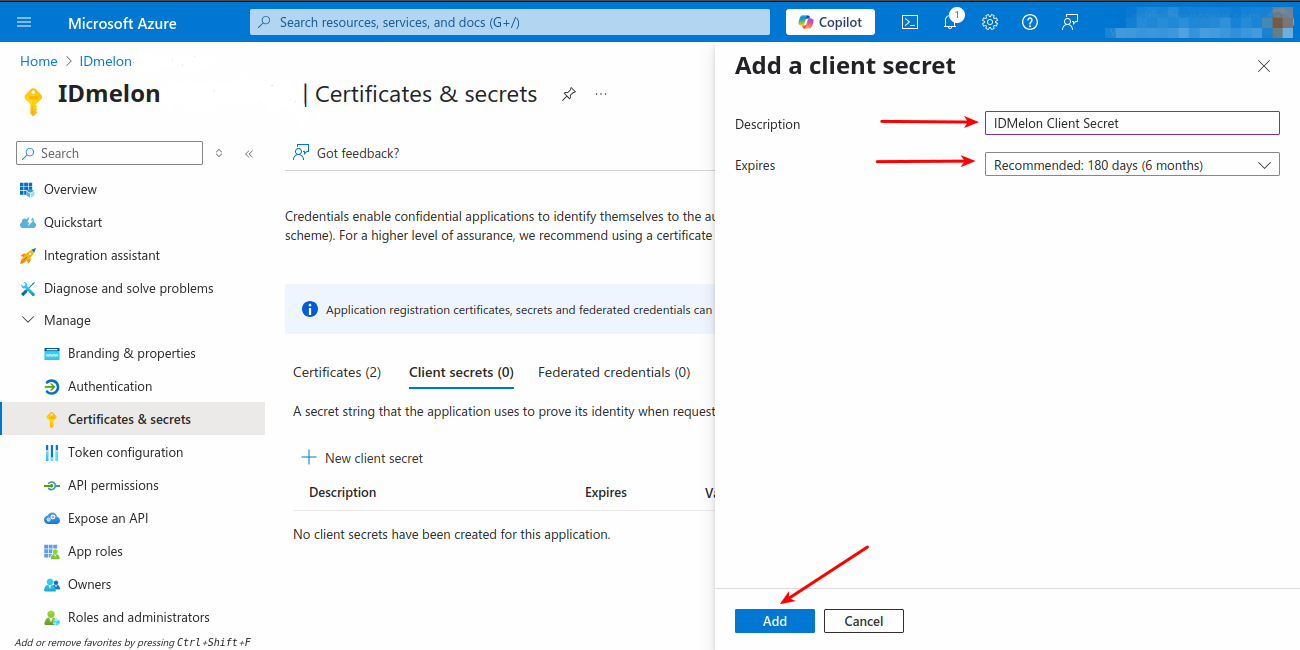

From the Certificates & Secrets blade, click the Client secrets tab, then click on New client secret. Add a description (optional), select the expiration, click Add, and copy the secret value.

Certificate #

Another option for securing the Azure Application is using a Certificate. For this, you need to create Private Key and Certificate files, then upload the certificate to the Azure Portal and the private key to the IDMelon Administration Panel. To create these files in RSA Format, you have several options. We present two script examples using Windows PowerShell and Linux Terminal.

Windows PowerShell Script

In Windows, first create a PFX file using the following commands:

# Create self-signed cert with exportable private key
$cert = New-SelfSignedCertificate -DnsName "localhost" `
    -CertStoreLocation "cert:\CurrentUser\My" `
    -KeyExportPolicy Exportable `
    -KeyLength 2048 `
    -KeySpec Signature `
    -NotAfter (Get-Date).AddYears(1)

# Export cert+private key as PFX (PKCS#12)
$pfxPath = "C:\Path\To\Output\File\mycert.pfx"
$securePwd = ConvertTo-SecureString -String "MyStrongPassword123!" -Force -AsPlainText
Export-PfxCertificate -Cert $cert -FilePath $pfxPath -Password $securePwd

Now extract both Private Key and Certificate files using the following OpenSSL commands:

# Convert private key to PEM (.key)
openssl pkcs12 -in C:\Path\To\Output\File\mycert.pfx -nocerts -out C:\Path\To\Output\File\private.key -nodes -passin pass:MyStrongPassword123!

# Convert certificate to PEM (.crt)
openssl pkcs12 -in C:\Path\To\Output\File\mycert.pfx -clcerts -nokeys -out C:\Path\To\Output\File\certificate.crt -passin pass:MyStrongPassword123!

Linux Shell Script

The following script creates Private Key and Certificate files using the OpenSSL library. It can install OpenSSL on a Debian-based environment if not already installed.

#!/bin/bash

#  This script is intended to run on a local machine with Ubuntu installed.

files=("private.key" "certificate.csr" "certificate.crt" "output.txt")

# check if OpenSSL is installed
if ! command -v openssl &> /dev/null
then
    echo "OpenSSL not found. Installing..."
    if sudo -v &> /dev/null; then
            echo "Sudo privileges found. Installing OpenSSL..."
            sudo apt update
            sudo apt install -y openssl
        else
            echo "No sudo privileges found. Cannot install OpenSSL."
        fi
else
    echo "OpenSSL is already installed."
fi

for file in "${files[@]}"; do
    if [ -f "$file" ]; then
        rm "$file"
    else
        echo "$file does not exist."
    fi
done

# Generate private key and self-signed certificate
openssl genpkey -algorithm RSA -pkeyopt rsa_keygen_bits:2048 -out private.key
openssl req -new -key private.key -out certificate.csr
openssl x509 -req -days 3650 -in certificate.csr -signkey private.key -sha256 -out certificate.crt # 10 years

echo "COMPLETED ;)"

Upload Certificate #

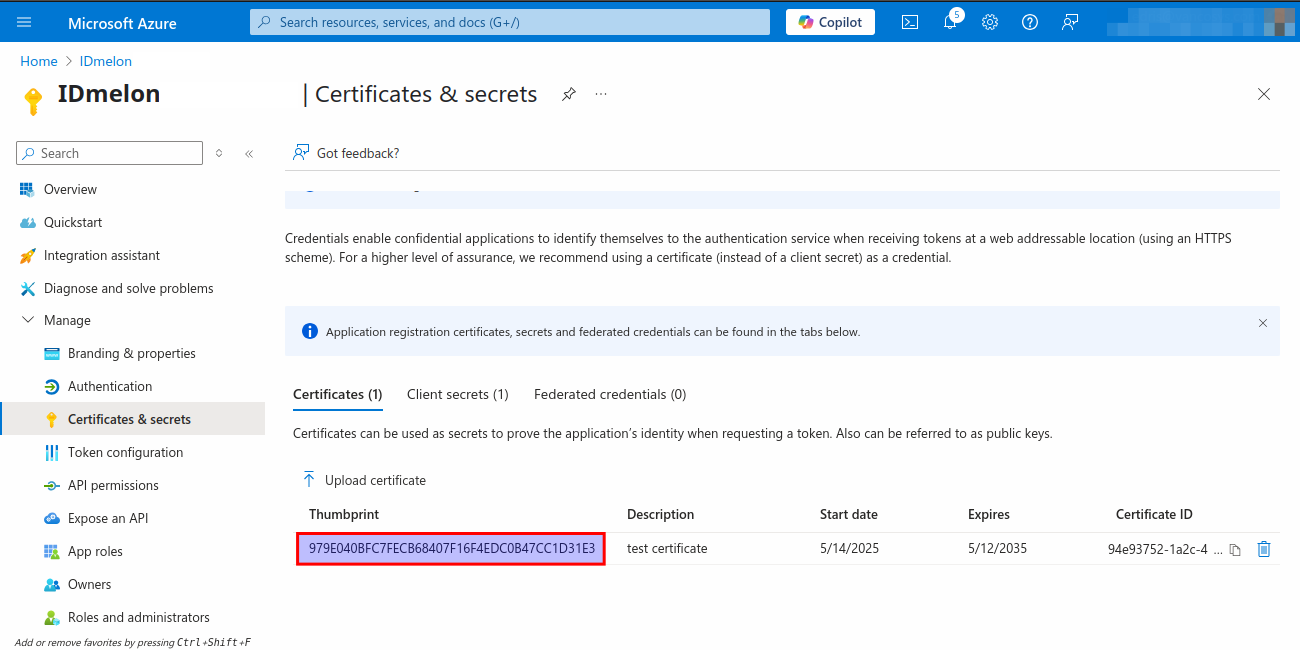

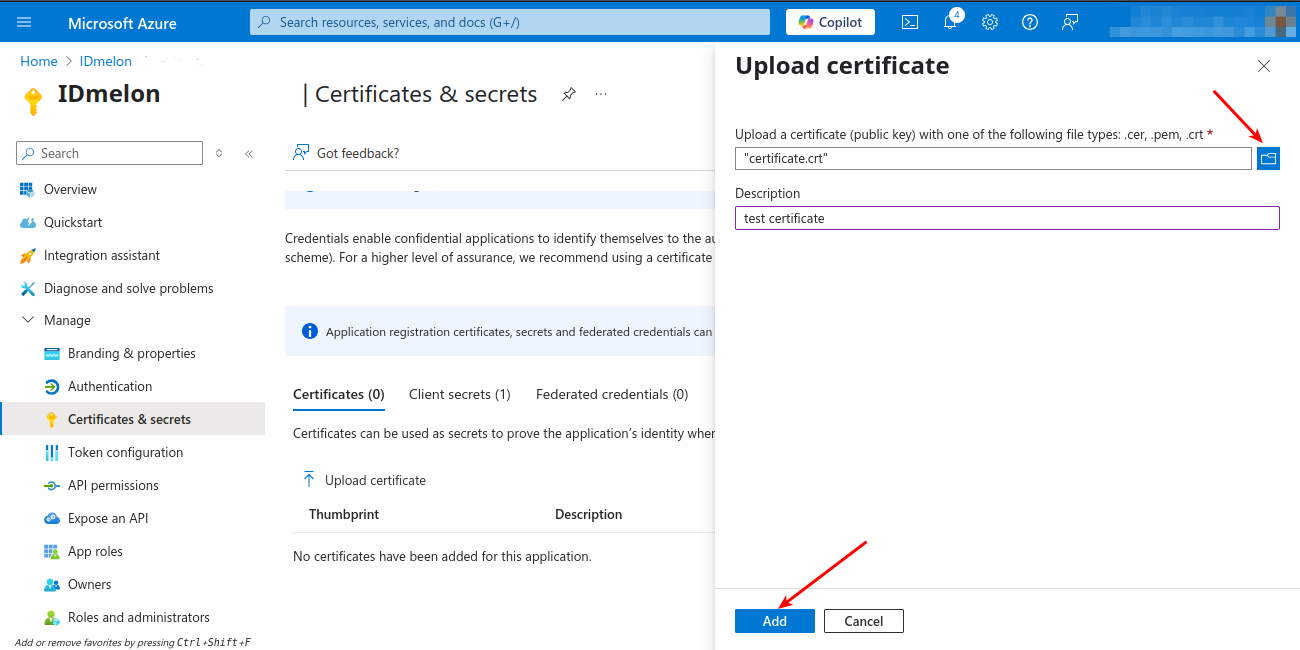

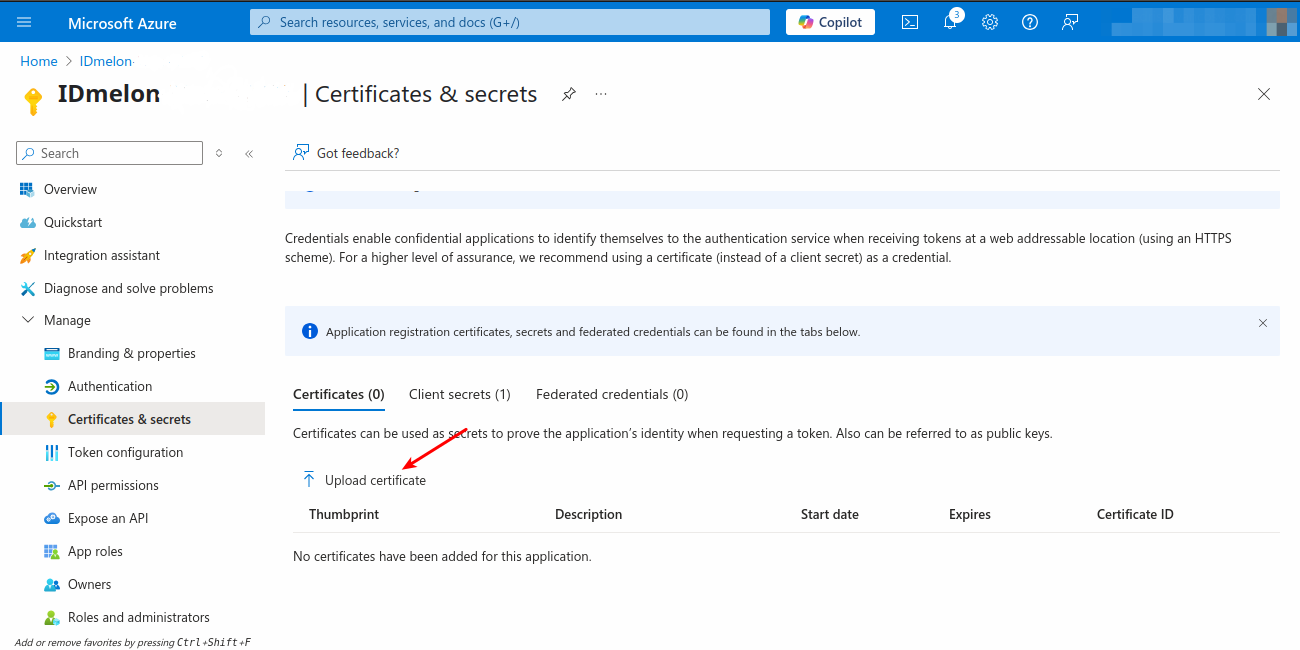

After creation of Private Key and Certificate files, upload the Certificate in Azure Portal. From the Certificates & Secrets blade, click the Certificate tab, then click on Upload certificate. Select the certificate file, add a description (optional), then click Add and copy the Thumbprint (expand the column to see it completely).

Permissions Management #

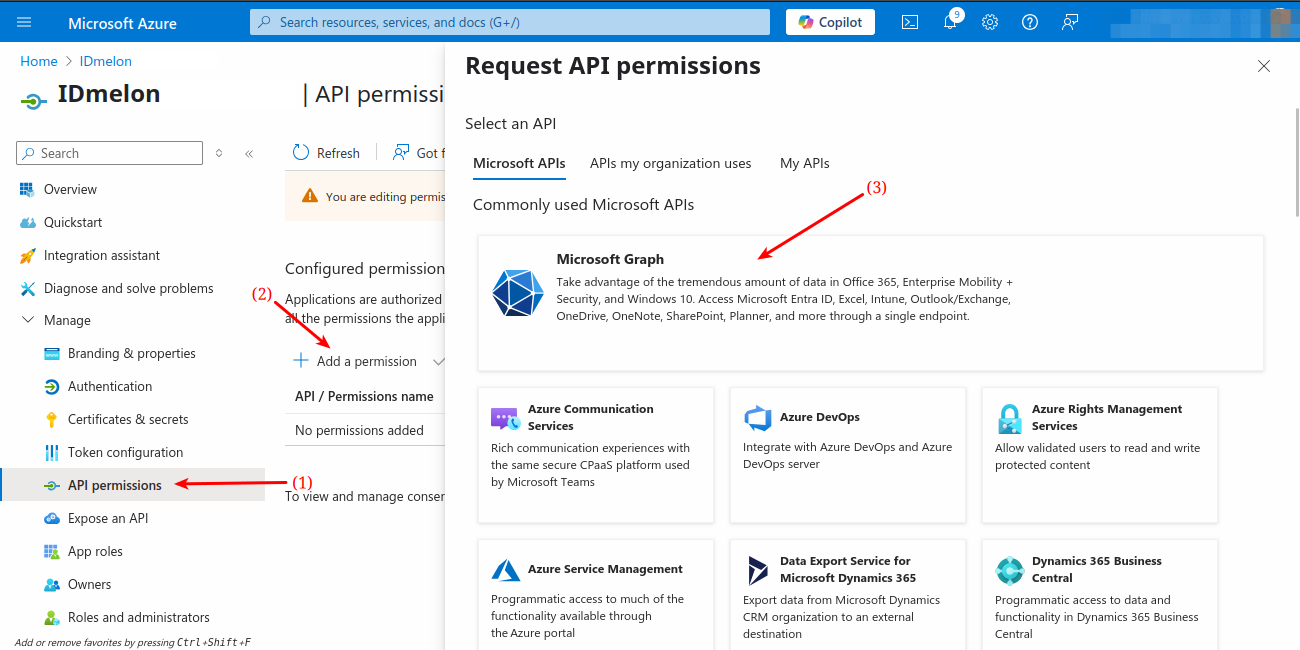

Navigate to the API permissions blade and click Add a permission. Select Microsoft Graph > Application permissions.

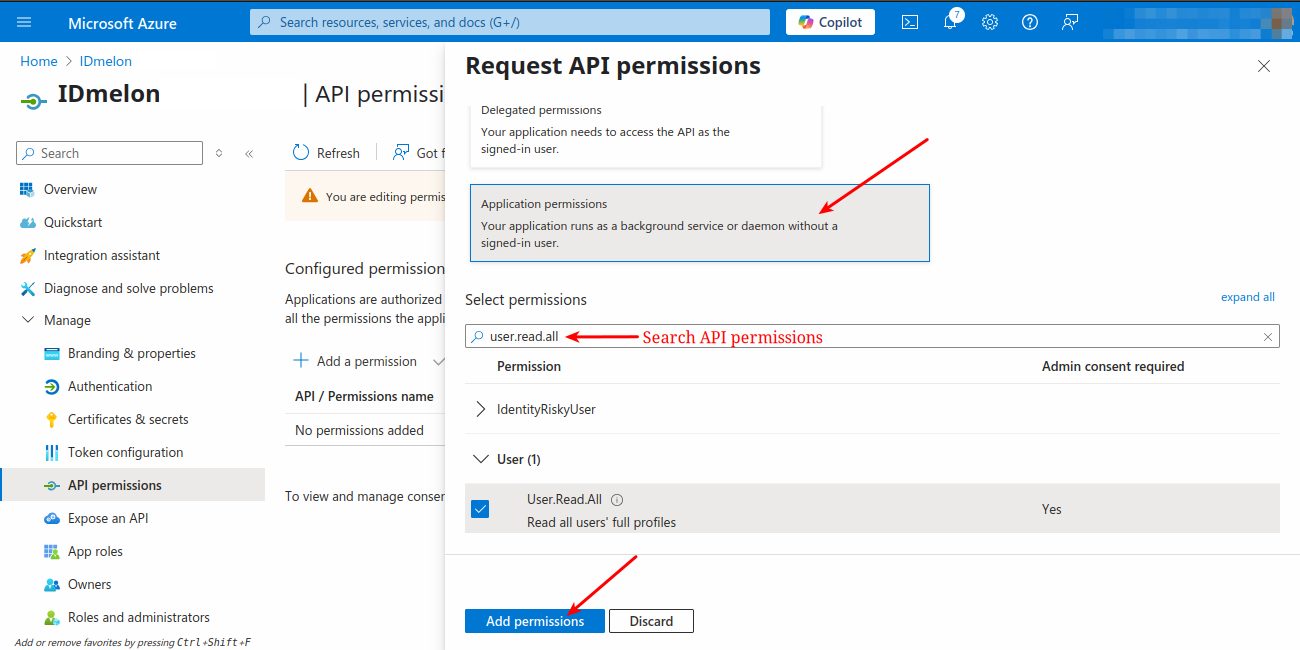

Select all the following permissions as required:

• Device.Read.All
• Group.Read.All
• User.Read.All
• UserAuthenticationMethod.ReadWrite.All

You can search for each of them and select it.

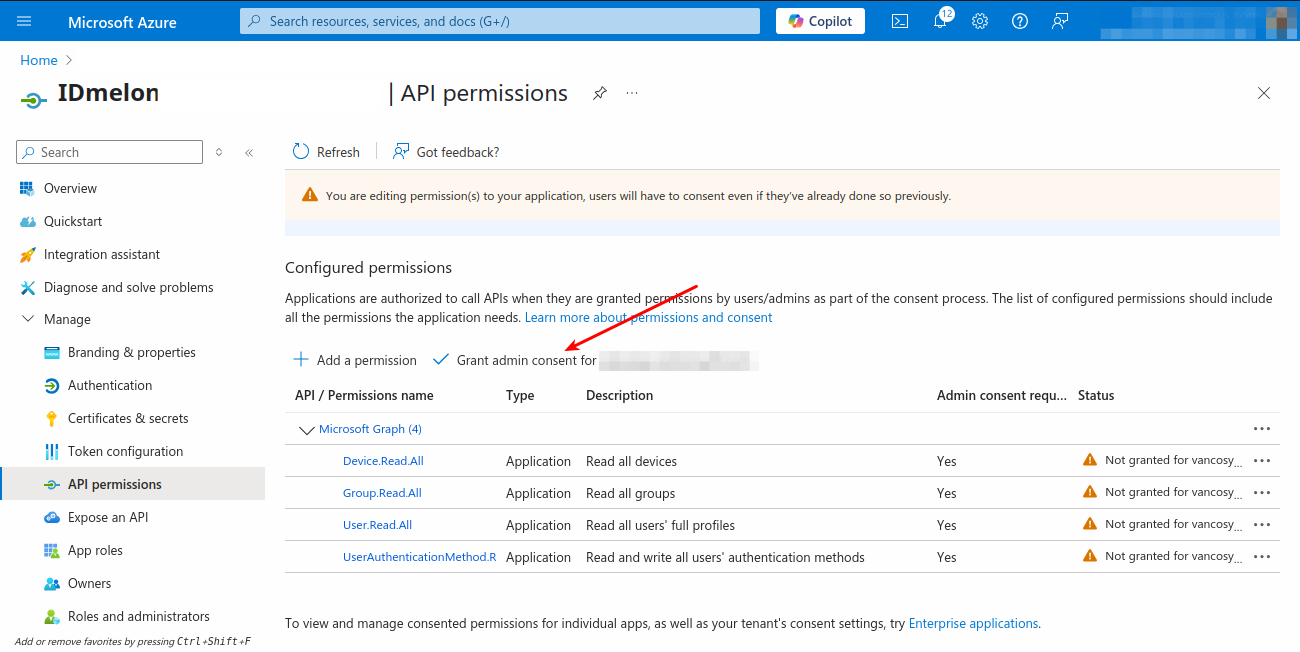

After adding all permissions, click Grant admin consent for <domain> and accept the confirmation.

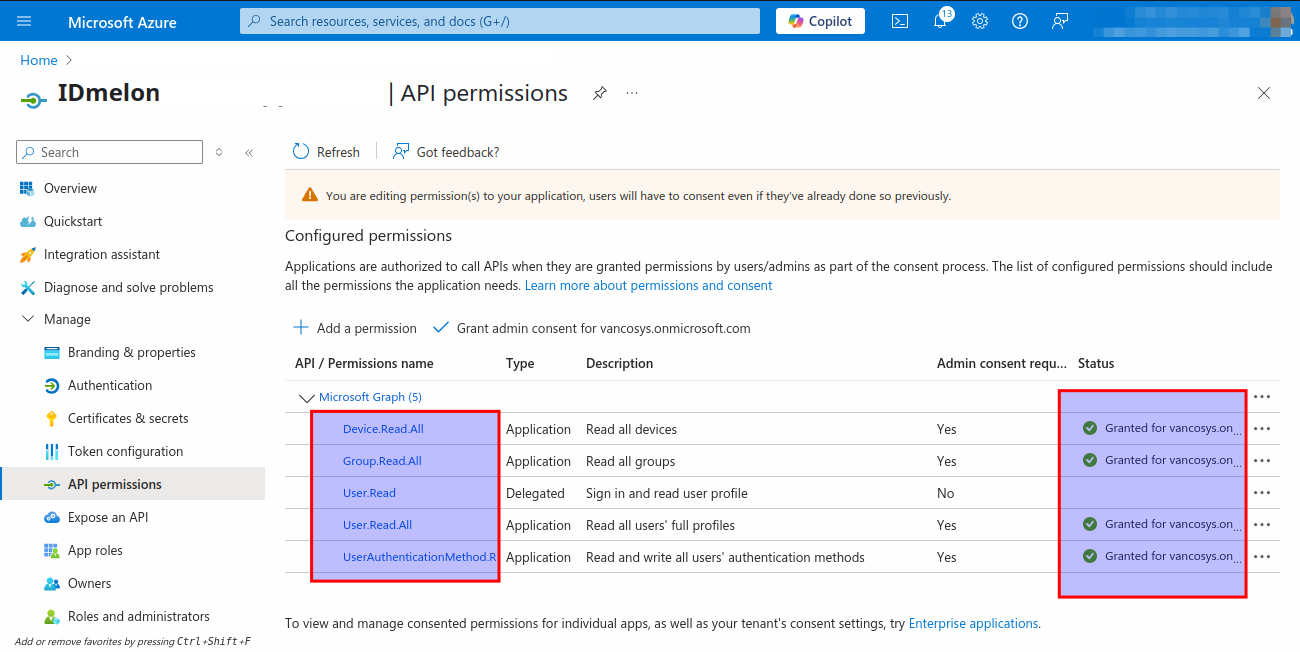

Finally, you should see the following state in your Azure Application:

Scoped Permissions Using Administrative Units #

For organizations that want to restrict the UserAuthenticationMethod.ReadWrite.All permission to specific groups of users, you can use Administrative Units to scope the permissions. This provides more granular control over which users IDmelon can manage authentication methods for.

To set up scoped permissions:

1. Navigate to Entra ID
2. Go to Roles and Administrators
3. Search for and select the Authentication Administrator role
4. Click Add Assignments

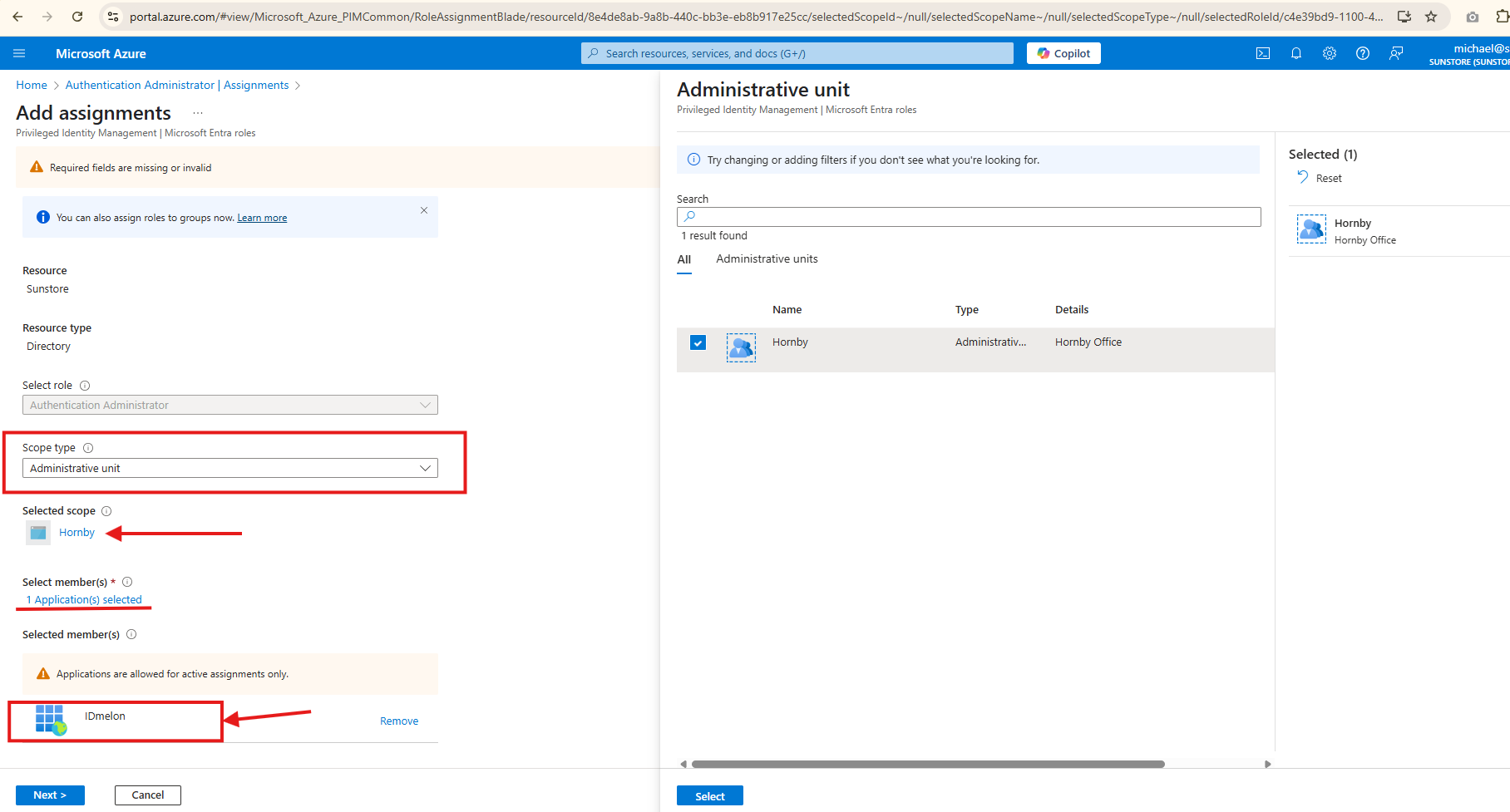

5. In the assignment configuration:
   • Set Scope type to “Administrative unit”
   • Select your administrative unit for the Selected Scope
   • Under Selected member(s), choose the IDmelon application you created in Enterprise Applications
6. Click Next
7. Provide a detailed justification, for example: “Granting permanent Authentication Administrator role to IDmelon to manage Passkey rollout for targeted users and groups defined within the administrative units”
8. Complete the assignment

This configuration allows IDmelon to manage MFA authentication methods only for users within the specified administrative unit, rather than all users in your organization.

For detailed instructions on creating and managing Administrative Units, refer to the Microsoft documentation.

Configure Redirect URL #

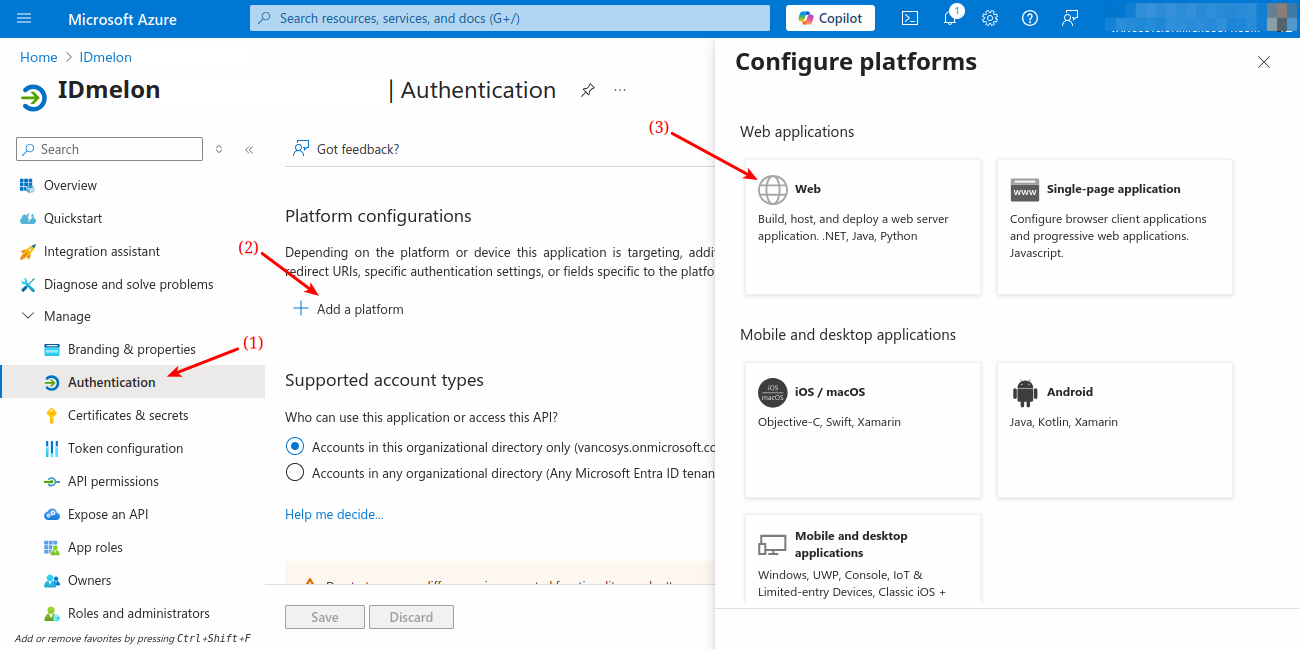

Go to the Authentication blade. Click Add a platform > Web. Enter https://skm.idmelon.com/aad/redirect-azure as the Redirect URI, then click Configure. Click Add URI, enter https://panel.idmelon.com and https://panel.idmelon.com/msal/result, and click Save.

Integration Azure Application with IDMelon #

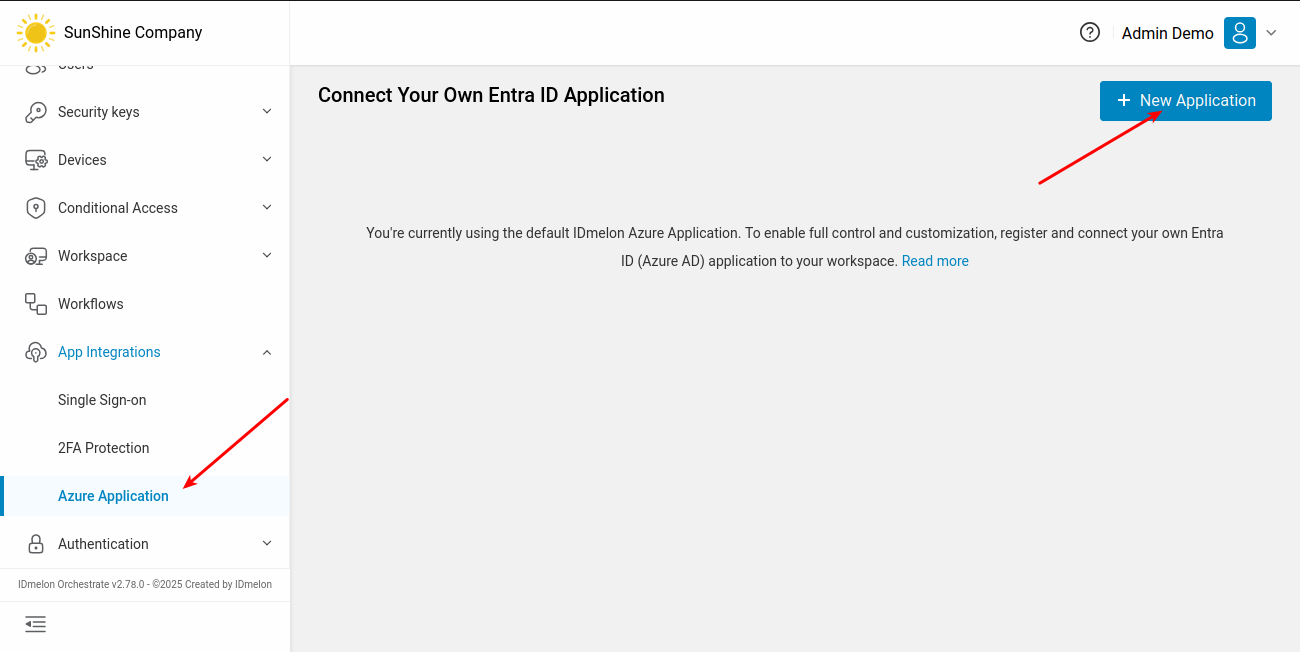

To integrate Azure Application with IDMelon, navigate to App Integrations > Azure Application and click on New Application.

You have two options to integrate an Azure Application:
1- Integrate using Client Secret, or
2- Use Certificate, based on what you configured in Azure Portal previously.

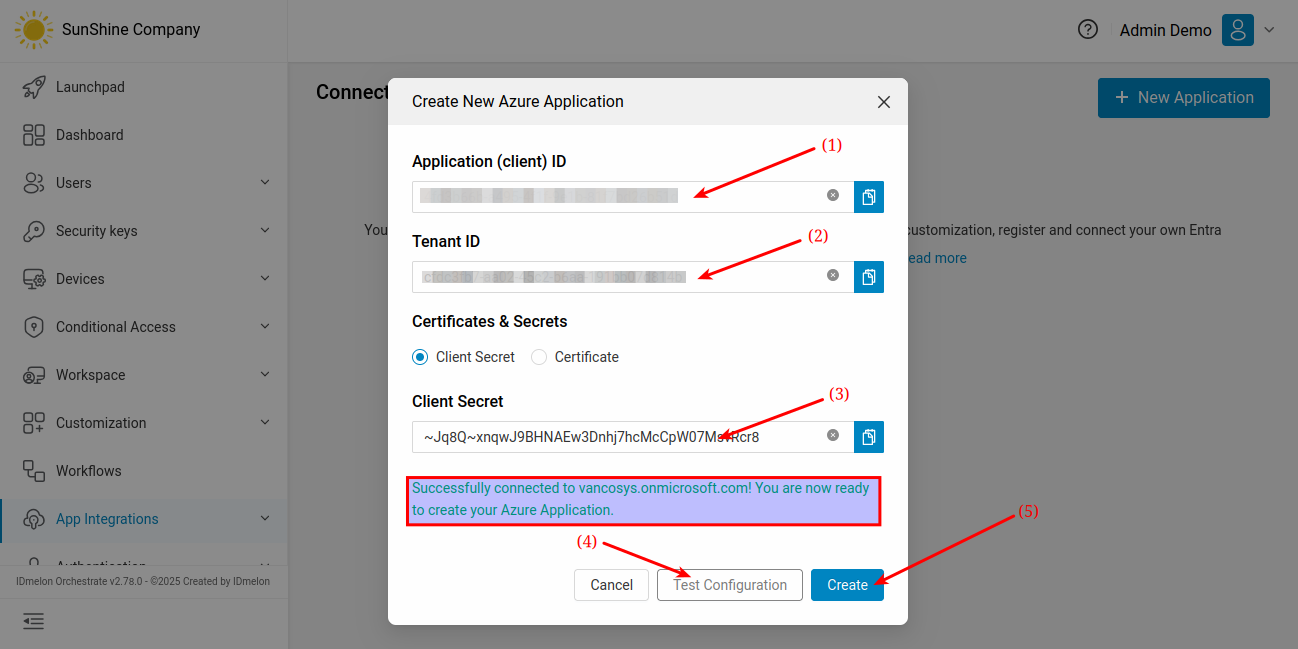

Using Client Secret #

If you created a Client Secret, fill in the following fields based on the information in your Azure Portal:

• Application (client) ID: Copy this from the Azure Application Overview Page.
• Directory (tenant) ID: Also copy this from the Azure Application Overview Page.
• Client Secret: This is the secret value you created in the Certificates and secrets page earlier.

After filling in all fields, click Test Configuration. If you see a successful message, click Create to integrate your application.

Using Certificate #

If you selected a Certificate option for your security policy, select the Certificate option in the Azure Application modal and fill in the following fields:

• Application (client) ID: Copy this from the Azure Application Overview Page.
• Directory (tenant) ID: Also copy this from the Azure Application Overview Page.
• Private Key: Upload the private key you created for the certificate.
• Thumbprint: This is available in the Certificates and secrets page under the Certificate tab. Select the thumbprint of the certificate relevant to the private key.

Finally, click Test Configuration to ensure your configuration can connect to Azure. If everything is fine, click Create.
